Dahua - Caméra réseau multi-capteurs 3x2MP + caméra PTZ - PSDW5631S-B360

Panoramic Camera

Image Sensor

Three 1/2.7” 2Megapixel CMOS

Effective Pixels

3x1920(H)x1080(V)

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.03Lux/F2.2( Color,1/3s,30IRE)

0.2Lux/F2.2( Color,1/30s,30IRE)

0.03Lux/F2.2( B/W,1/3s,30IRE)

0.2Lux/F2.2( B/W,1/30s,30IRE)

IR Distance

Distance up to 15m(49ft)

IR On/Off Control

Auto/ Manual

IR LEDs

6

Panoramic Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2mm

Aperture Type

Fixed

Max. Aperture

F2.2

Angle of View

H: 136˚, V:78˚

DORI Distance

Detect

Observe

Recognize

Identify

30m(98ft)

12m(39ft)

6m(20ft)

3m(10ft)

PTZ Camera

Image Sensor

1/2.7” 2Megapixel CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1~1/30000s

Minimum Illumination

0.02Lux/F1.8( Color,1/3s,30IRE)

0.1Lux/F1.8( Color,1/30s,30IRE)

0.02Lux/F1.8( B/W,1/3s,30IRE)

0.2Lux/F1.8( B/W,1/30s,30IRE)

PTZ Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Aperture Type

Auto

Max. Aperture

F1.8

Angle of View

H: 105.9˚~33.3˚, V: 56˚~18.7˚

Optical Zoom

5x

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44m(144ft)

18m(59ft)

9m(30ft)

4.5m(15ft)

T

133m

(436ft)

53m

(174ft)

26m

(85ft)

13m

(43ft)

PTZ

Pan/Tilt Range

Pan: 0° ~ 355° endless; Tilt: 0° ~ 80°

Manual Control Speed

Pan: 32° ~51° /s; Tilt: 22° ~40° /s

Presets Speed

Pan: 51° /s ; Tilt: 40° /s

Presets

80

Speed Setup

Human-oriented focal Length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Intelligence

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(sub stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

Panoramic Camera

1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640×480)/CIF(352×288/352x240)

PTZ Camera

1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640×480)/CIF(352×288/352x240)

Frame Rate

Panoramic Camera

Main Stream: 1080P(1~25fps)

Sub Stream: D1(1 ~ 25fps)

PTZ Camera

Main Stream: 1080P(1~25fps)

Sub Stream: D1(1~25fps)

Bit Rate Control

CBR/VBR

Bit Rate

Panoramic Camera

H.265: (16Kbps~ 6144Kbps)
H.264: (32Kbps~ 8192Kbps)

PTZ Camera

H.265: 4Kbps~ 8192Kbps
H.264: 8Kbps~ 7168Kbps

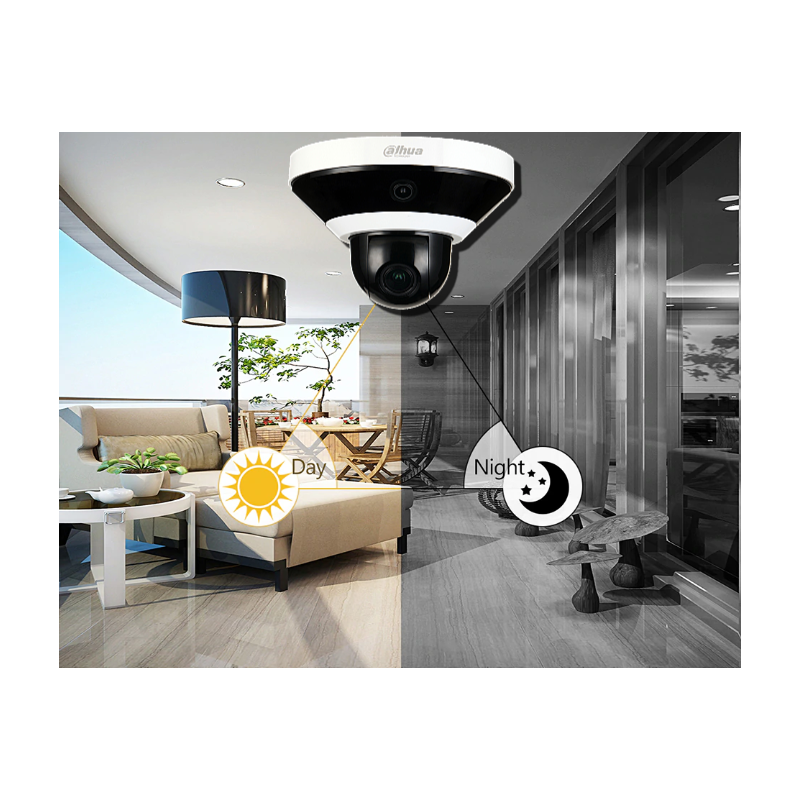

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Support

Privacy Masking

Panoramic Camera

Off / On (4 Area, Rectangle)

PTZ Camera

Off / On (24 Area, Rectangle)

Audio

Compression

G.711a/G.711Mu/AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF Profile T, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE:EN 60950-1

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

1 Port

Alarm

3 channel In: 5mA 5VDC

2 channel Out: 300mA 12V

Electrical

Power Supply

DC12V(±30%), PoE(802.3at)(Class 4)

Power Consumption

DC12V:7.2W 14.8W(IR+PTZ+Zoom)

PoE:7.4W 16.1W(IR+PTZ+Zoom)

Environmental

Operating Conditions

-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH

Strorage Conditions

-10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal+Plastic

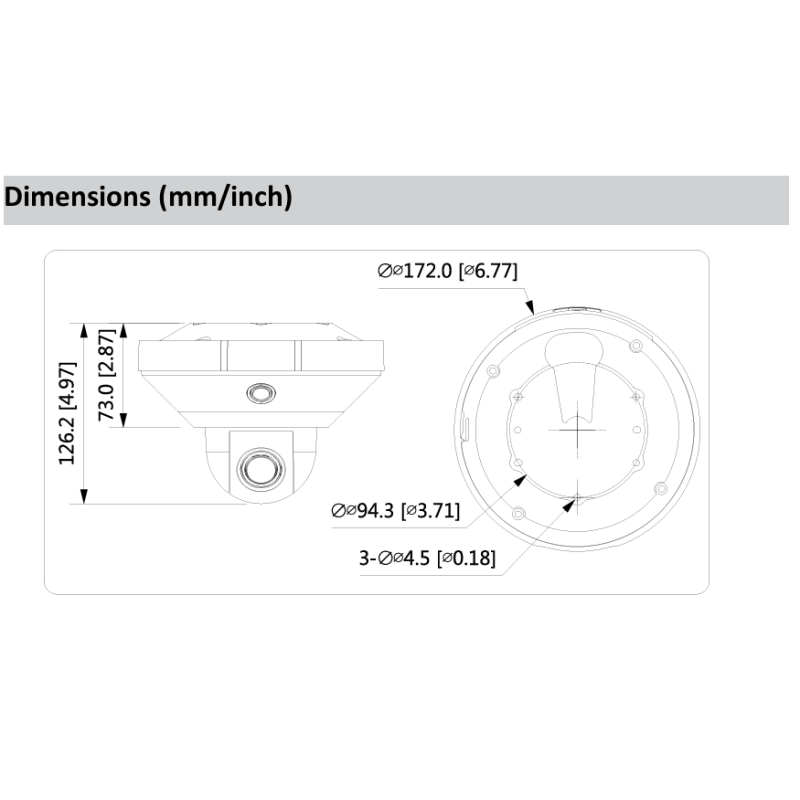

Dimensions

Φ172mm×123.4mm(Φ6.77”×4.86”)

Net Weight

0.78kg(1.72lb)

Gross Weight

1.13kg(2.5lb)
